S1 100W, 125W, 150W
FEATURE
1. High e ciency certi cation
2. Modular type
3. Approval LED module form ‘The Korea Road Tra c Authority’
4. 99.9% compatible with lighting source, lighting xture and SMPS
5. IP : 66
6. Interal SMPS / External SMPS (Option)
USES– Residential area, Square area, Road and so on.
Products Specification
| Description No. | 100W | 125W | 150W |
|---|---|---|---|
| Model No. | ZSS1-A0A-E01 | ZSS1-A2A-E01 | ZSS1-A5A-E01 |
| Total Luminous Flux (lm) | 12,000 lm ↑ | 15,000 lm ↑ | 18,000 lm ↑ |
| Luminous Efficiency (lm/W) | 120 lm/w ↑ | 120 lm/w ↑ | 120 lm/w ↑ |

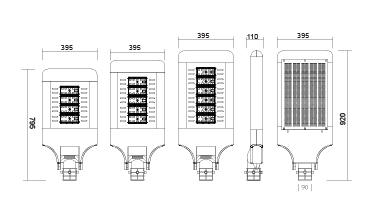

| Size | 920X395X110 mm | 920X395X110 mm | 920X395X110 mm |
| Weight (g) | 10.3 Kg | 10.7 Kg | 11.1 Kg |
| Related Voltage (V) | 220V / AC | 220V / AC | 220V / AC |
| Power Consumption | 100W | 125W | 150W |
| Color Rendering Index (CRI) | 80 Ra ↑ | 80 Ra ↑ | 80 Ra ↑ |
| Color Temperature (K) | 3,000&5,000K | 3,000&5,000K | 3,000&5,000K |
| Beam Angle( ˚ ) | 140º | 140º | 140º |
| Life Time | 50,000hr | 50,000hr | 50,000hr |
| Available Temperature(˚C) | -30˚C~50˚C | -30˚C~50˚C | -30˚C~50˚C |
