25W 40W 50W(Lens)
FEATURE
1. High e ciency certi cation
2. LED light source, aluminum lighting xture
and SMPS are assembled
3. Circuit of surge protection is built in / over 2K
USES
Public area, commercial area and shop, restroom,
hall way and all indoor areas

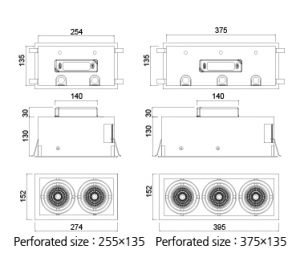

Drawing
Products Specification
| Description No. | 25W | 25W | 40W | 40W |
|---|---|---|---|---|
| Model No. | ZD-25Z-E01 | ZD-25Z-E02 | ZD-40Y-E01 | ZD-40Y-E02 |
| Total Luminous Flux (lm) | 2,650 lm | 2,250 lm | 4,400 lm | 3,800 lm |
| CRI(Ra) | 80Ra | 80Ra | 80Ra | 80Ra |
| Luminous Efficiency (lm/W) | 105 lm/W | 105 lm/W | 110 lm/W | 95 lm/W |
| Size | 275X152X152 | 275X152X152 | 395X152X152 | 395X152X152 |
| Weight (g) | 1.6 kg | 1.6 kg | 2.4 kg | 2.4 kg |
| Power Consumption | 25W | 25W | 40W | 40W |

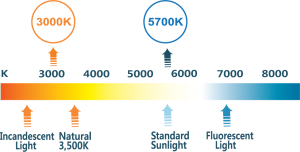

| Color Temperature (K) | 3,000 K | 5,700K | 3,000 K | 5,700K |
| Lifespan | 50,000hr | 50,000hr | 50,000hr | 50,000hr |
| Available Temperature(˚C) | -20˚C~50˚C | -20˚C~50˚C | -20˚C~50˚C | -20˚C~50˚C |
