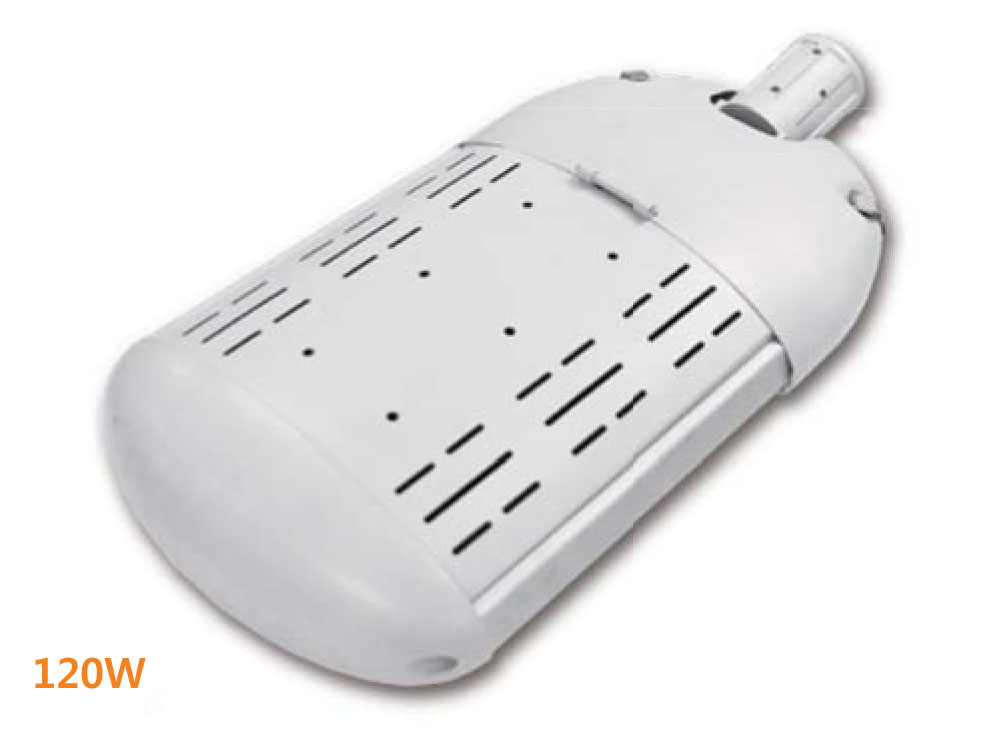

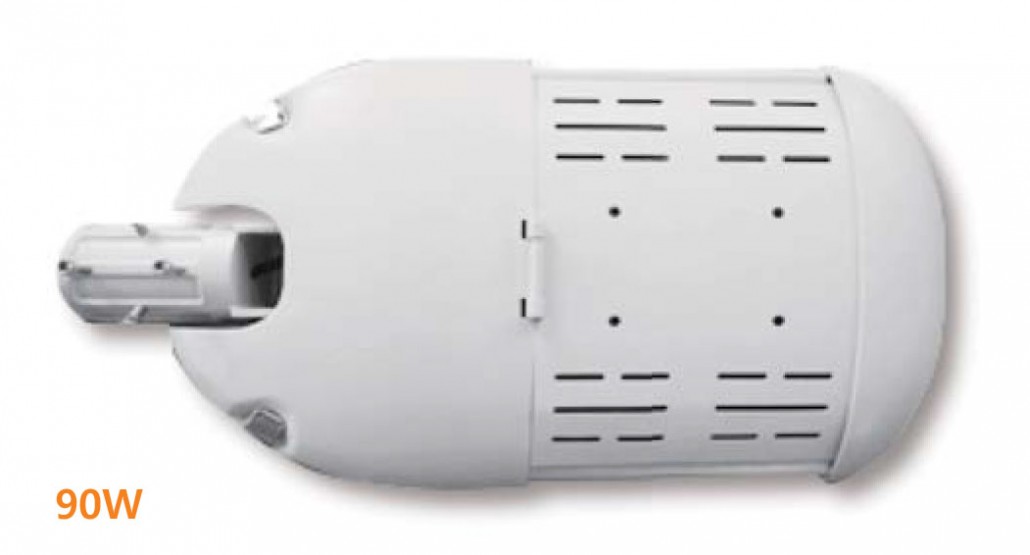

90W 120W 150W 200W 250W
FEATURE
1. No glass components on products and stronger at external shock.
2. Easy to maintenance and expandability Even frequent ickering, lifespan keeps.
3. 3 year warranty.
USES
Residential area, Square area, Road and so on.
Detail

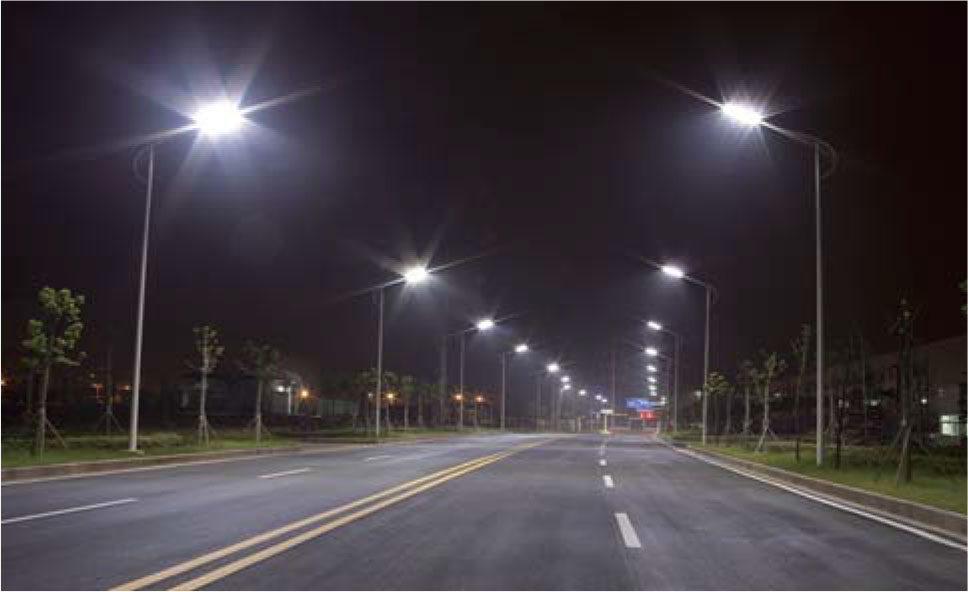

Installations
Products Specification
| Description No. | ZS-90B-N57S-E01 | ZS-A2B-N57S-E01 | ZS-A5B-N57S-E01 | ZS-B0B-N57S-E01 | ZS-B5B-N57S-E01 |
|---|---|---|---|---|---|
| Luminous Flux(lm) | 9,900lm | 13,600lm | 17,100lm | 21,400lm | 27,250lm |
| LUminous Efficiency(lm/w) | 103lm/w | 114lm/w | 115lm/w | 108lm/w | 109lm/w |
| CRI(Ra) | OVER 75 Ra | OVER 75 Ra | OVER 75 Ra | OVER 75 Ra | OVER 75 Ra |
| Light Color(K) | 5,700K | 5,700K | 5,700K | 5,700K | 5,700K |
| Size | 600X350X145mm | 705X350X145mm | 810X350X145mm | 915X350X145mm | 970X350X145mm |
| Weight | 6.5kg | 7kg | 7.5kg | 7.9kg | 8.3kg |
| Power Consumption | 90w | 120w | 150w | 200w | 250w |
| Life Time | 40,000hr | 40,000hr | 40,000hr | 40,000hr | 40,000hr |
| Available Temperature(˚C) | -30˚C~60˚C | -30˚C~60˚C | -30˚C~60˚C | -30˚C~60˚C | -30˚C~60˚C |
| IP | 65 | 65 | 65 | 65 | 65 |
