100W 150W 200W
FEATURE
1. Whole structure heating dissipation design with
e cient thermal conduction, radiation and convection
2. Integrated lampshade reduces glare
3. A round shape style continued from traditional lamps
4. Flexible to reach desired power consumption
by choosing appropriate light engines and drivers
5. Ergonomic and uniform lighting distribution designs
USES
· Factory facilities (plant, o ce, warehouse etc.)
· Area lighting (exhibition hall, convention center, garage etc.)
· Indoor sports facilities (gym, club etc.)
Products Specification
| Description No. | 100W | 150W | 200W |
|---|---|---|---|
| Model No. | ZH-A0M-EH2VN | ZH-A5M-EH2VN | ZH-B0M-EH2VN |
| Total Luminous Flux (lm) | 13,000 lm | 19,500 lm | 26,000 lm |
| Luminous Efficiency (lm/W) | 130 lm/W | 130 lm/W | 130 lm/W |

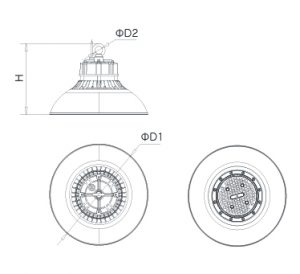

| Size | Ø330X230 | Ø380X280 | Ø415X305 |
| Weight (g) | 2.2 kg | 3.6 kg | 5.0 kg |
| Related Voltage (V) | 220V /AC | 220V /AC | 220V /AC |
| Power Consumption | 100W | 150W | 200W |
| Frequency Amplitude | 60Hz | 60Hz | 60Hz |
| Color Rendering Index (CRI) | Ra 80 | Ra 80 | Ra 80 |
| Color Temperature (K) | 5,700K | 5,700K | 5,700K |
| Beam Angle( ˚ ) | 60˚/90˚ | 60˚/90˚ | 60˚/90˚ |
| Life Time | 50,000hr | 50,000hr | 50,000hr |
| Available Temperature(˚C) | -20˚C~50˚C | -20˚C~50˚C | -20˚C~50˚C |
| IP | 65 | 65 | 65 |
