Surface Mount – IR Wireless Dimming
FEATURE
1. Available dimming system based on human body detection
2. Available set-up as group control
3. Useful LED light in the house or oce
3. Circuit of surge protection is built in / over 2K
USES
House, Living Room, Office, Department, Shops,
Hospital and All over Places.
![Light Color 5700K](http://www.zamled.com/wp-content/uploads/2015/07/panellight_35w40w45w50w_img-300x148.png)

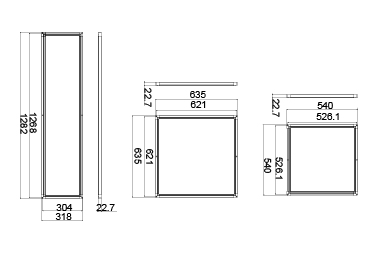

Drawing
![2-06-1](http://www.zamled.com/wp-content/uploads/2019/06/2-06-1-300x205.jpg)
Installations
![panel light 35w 40w 45w 50w installations](http://www.zamled.com/wp-content/uploads/2015/07/panellight_35w40w45w50w_img3-300x168.png)
![panel light 35w 40w 45w 50w installations](http://www.zamled.com/wp-content/uploads/2015/07/panellight_35w40w45w50w_img3-2-300x157.png)
Products Specification
Description No. | 1285X317mm 50W | 635X635mm 50W | 540X540mm 25W |
---|---|---|---|
Model No. | ZE-40A-D51 | ZE-40B-D51 | ZE-25C-D51 |
Luminous Flux(lm) | 3,800 lm | 3,800 lm | 2,250 lm |
LUminous Efficiency(lm/w) | 95 lm/W | 95 lm/W | 95 lm/W |
CRI(Ra) | 80Ra | 80Ra | 80Ra |
Light Color(K) | 5,700K | 5,700K | 5,700K |
Beam Angle( ˚ ) | 120˚ | 120˚ | 120˚ |
Size | 1285X318X23 mm | 635X635X23 mm | 540X540X23 mm |
Weight | 3.8kg | 3.4 kg | 2.9 kg |
Power Consumption | 40W | 40W | 25W |
Life Time | 50,000hr | 50,000hr | 50,000hr |
Available Temperature(˚C) | -20˚C~50˚C | -20˚C~50˚C | -20˚C~50˚C |
