120W 150W 250W
FEATURE
1. Modular pluggable technology, easy tool onsite mainenance
2. Honeycomb briquette burning e ecte
and the whole structure cooling technology
3. Double-coupling IP68 protection, highest waterproof level
4. Metal structure, high mechanical strenght
5. Ergonomic light distribution to achieve uniform illuminating e ect
6. Free moudlar serialization and full power range solution
USES
Residential areas, factories, sidewalks, streets and roads

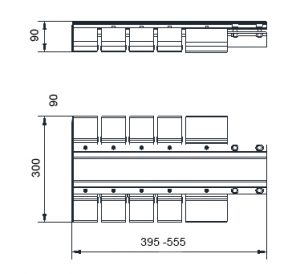

Drawing
Installations
Products Specification
| Description No. | 120W | 150W | 250W |
|---|---|---|---|
| Model No. | ZSS2-A2B-EH1VN | ZSS2-A5B-EH1VN | ZSS2-B5B-EH1VN |
| LUminous Efficiency(lm/w) | 15,600 lm | 19,500 lm | 32,500 lm |
| Luminous Flux(lm) | 130 lm/W | 130 lm/W | 130 lm/W |
| CRI(Ra) | 80 Ra | 80 Ra | 80 Ra |
| Light Color(K) | 5,700K | 5,700K | 5,700K |
| Size | 395X300X90 | 475X300X90 | 555X300X90 |
| Weight | 5 kg | 5.8 kg | 6.6 kg |
| Power Consumption | 120w | 150w | 250w |
| Life Time | 50,000hr | 50,000hr | 50,000hr |
| Available Temperature(˚C) | -40˚C~50˚C | -40˚C~50˚C | -40˚C~50˚C |
| Beam Angle | 120° | 120° | 120° |
| IP | 67 | 67 | 67 |
