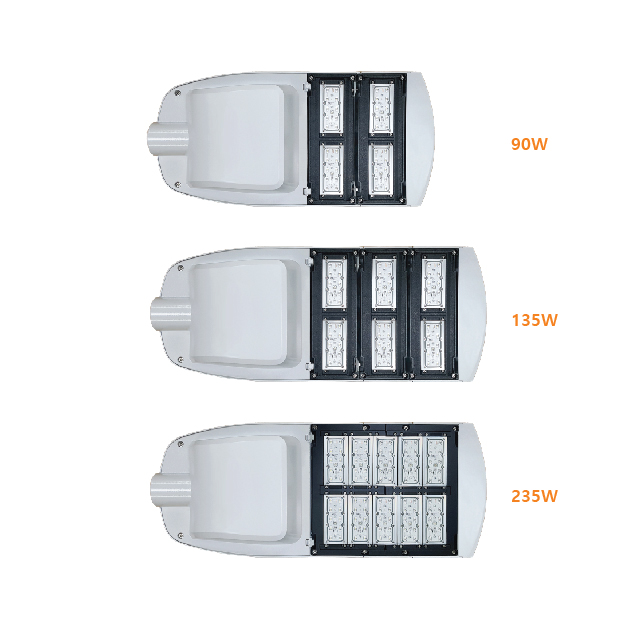

T2 90W, 135W, 235W
Features
1. Built from extremely durable, high-impact materials, the unit can stand up to even the most challenging environments.
2. Easy to maintenance and fully integrated and extensible.
3. Long lifespan.
4. Instant light on
USES
– Residential area, Square area, Road and so on.

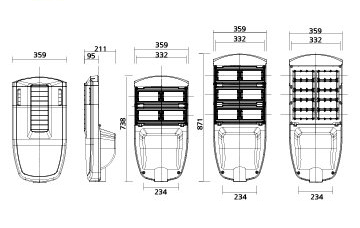

Drawing

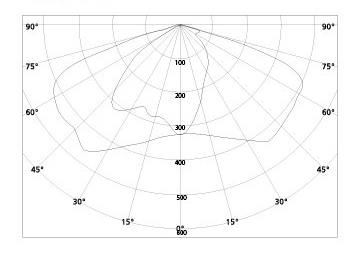

Light Distribution Data
Products Specification
Description No. | 90W | 135W | 235W |
---|---|---|---|
Model No. | ZS-A0E-N01 | ZS-A5E-N01 | ZS-B5E-N01 |
Total Luminous Flux (lm) | Over 10,000 lm | Over 15,000 lm | Over 25,850 lm |
Luminous Efficiency (lm/W) | Over 110 lm/w | Over 110 lm/w | Over 110 lm/w |
Size | 738X359X211 mm | 871X359X211 mm | 871X359X211 mm |
Weight (g) | 8.6 Kg | 9.1 Kg | 10.1 Kg |
Related Voltage (V) | 220V / AC | 220V / AC | 220V / AC |
Power Consumption | 90W | 135W | 235W |
Color Rendering Index (CRI) | 75 Ra 이상 | 75 Ra 이상 | 75 Ra 이상 |
Color Temperature (K) | 5,000K | 5,000K | 5,000K |
Beam Angle( ˚ ) | 135º | 135º | 135º |
Life Time | 50,000hr | 50,000hr | 50,000hr |
Available Temperature(˚C) | -30˚C~50˚C | -30˚C~50˚C | -30˚C~50˚C |
