100W, 150W, 200W
Features
1.Built from extremely durable, high-impact materials, the unit can stand up to even the most challenging environments.
2. Easy to maintenance and fully integrated and extensible.
3. Long lifespan.
4. Instant light on
USES
Residential area, Square area, Road and so on.

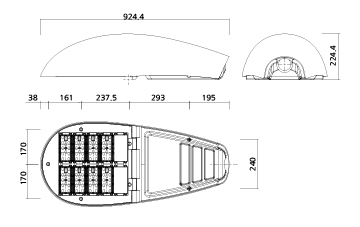

Drawing

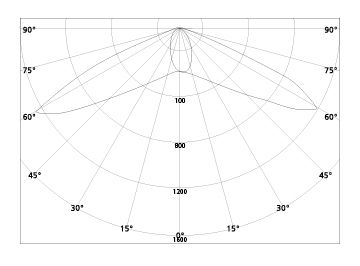

Light Distribution Data
Products Specification
| Description No. | 100W | 150W | 200W |
|---|---|---|---|
| Model No. | ZS-A0D-N01 | ZS-A5D-N01 | ZS-B0D-N01 |
| Total Luminous Flux (lm) | OVER 9,610 lm | OVER 14,200 lm | OVER 18,600 lm |
| Luminous Efficiency (lm/W) | OVER 105 lm/w | OVER 106 lm/w | OVER 102 lm/w |
| Size | 924X418X224 mm | 924X418X224 mm | 924X418X224 mm |
| Weight (g) | 9.1 Kg | 9.7 Kg | 10.9 Kg |
| Related Voltage (V) | 220V / AC | 220V / AC | 220V / AC |
| Power Consumption | 100W | 150W | 200W |
| Color Rendering Index (CRI) | 75 Ra 이상 | 75 Ra 이상 | 75 Ra 이상 |
| Color Temperature (K) | 4,000~6,000K | 4,000~6,000K | 4,000~6,000K |
| Beam Angle( ˚ ) | 135º | 135º | 135º |
| Life Time | 50,000hr | 50,000hr | 50,000hr |
| Available Temperature(˚C) | -30˚C~50˚C | -30˚C~50˚C | -30˚C~50˚C |
