Edge lit – 40W,50W
FEATURE
1. Proof Light / IP 65
2. High eect with high specication and quality
3. Save more than 80% electricity compared to halogen
USES
factory, big kitchen, swim pool, water supply plant and so on
![Light Color 5700K](http://www.zamled.com/wp-content/uploads/2015/07/panellight_35w40w45w50w_img-300x148.png)
DRAWING
![2-10-1](http://www.zamled.com/wp-content/uploads/2019/06/2-10-1-300x274.jpg)
Installations
![panel light 35w 40w 45w 50w installations](http://www.zamled.com/wp-content/uploads/2015/07/panellight_35w40w45w50w_img3-300x168.png)
![panel light 35w 40w 45w 50w installations](http://www.zamled.com/wp-content/uploads/2015/07/panellight_35w40w45w50w_img3-2-300x157.png)
LED WaterProof Light Specification

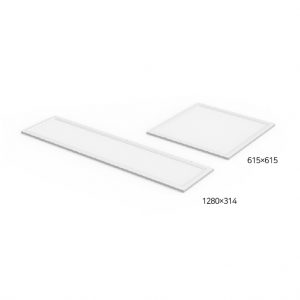

Description No. | 1280×314 | 615×615 |
---|---|---|
Model No. | ZF-50A-E01D | ZF-50B-E01D |
Luminous Flux(lm) | 4,500 lm | 4,500 lm |
LUminous Efficiency(lm/w) | 90 lm/W | 90 lm/W |
CRI(Ra) | 80Ra | 80Ra |
Light Color(K) | 5,700 K | 5,700 K |
Beam Angle( ˚ ) | 120˚ | 120˚ |
Size | 1280X314X47mm | 615X615X47 mm |
Weight | 4.8 kg | 4.5 kg |
Power Consumption | 50 W | 50 W |
Life Time | 40,000hr | 40,000hr |
Available Temperature(˚C) | -20˚C~50˚C | -20˚C~50˚C |
