Ball Lamp 8W 12W 15W
FEATURE
1. Large Output of Lighting Sources are Used.
2. Control Solution is Applied Based on Standard Type.
3. Save 80% Electricity Comparing Hallogen.
4. High power lighting sources are used.
USES
Art Museum, Museum, Restaurant, Lobby, Shops, Exhibition, Showcase etc.
Drawing
Products Specification
| Description No. | 8W / 6,500K | 8W / 3,000K | 12W / 6,500K | 12W / 3,000K | 15W / 6,500K | 15W / 3,000K |
|---|---|---|---|---|---|---|

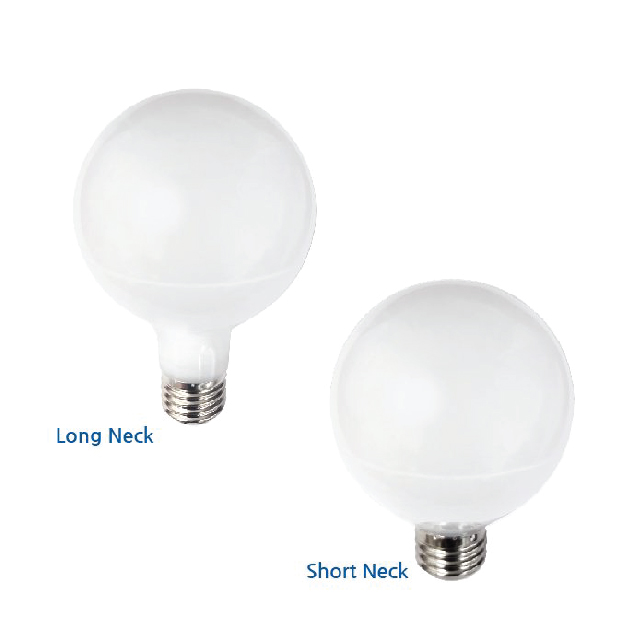

| Model No. -Short Neck | ZB-08D-A03 | ZB-08D-A04 | ZB-12D-A03 | ZB-12D-A04 | ZB-15D-A03 | ZB-15D-A04 |
| Model No.-Long Neck | ZB-08D-A05 | ZB-08D-A06 | ZB-12D-A05 | ZB-12D-A06 | ZB-15D-A05 | ZB-15D-A06 |
| Total Luminous Flux (lm) | 600lm ↑ | 600lm ↑ | 1,000lm ↑ | 1,000lm ↑ | 1,200lm ↑ | 1,200lm ↑ |
| Luminous Efficiency (lm/W) | 75lm/W ↑ | 75lm/W ↑ | 83lm/W ↑ | 83lm/W ↑ | 80lm/W ↑ | 80lm/W ↑ |
| Size . -Short Neck | Ø80X107mm | Ø80X107mm | Ø95X124 mm | Ø95X124 mm | Ø120X153 mm | Ø120X153 mm |
| Size . -Long Neck | Ø80X128mm | Ø80X128mm | Ø95X145 mm | Ø95X145 mm | Ø120X174 mm | Ø120X174 mm |
| Related Voltage (V) | 220V / AC | 220V / AC | 220V / AC | 220V / AC | 220V / AC | 220V / AC |
| Power Consumption | 8W | 8W | 12W | 12W | 15W | 15W |
| Frequency Amplitude | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Color Rendering Index (CRI) | 80 Ra ↑ | 80 Ra ↑ | 80 Ra ↑ | 80 Ra ↑ | 80 Ra ↑ | 80 Ra ↑ |
| Color Temperature (K) | 6,500 K | 3,000 K | 6,500 K | 3,000 K | 6,500 K | 3,000 K |
| Beam Angle( ˚ ) | 140˚ | 140˚ | 140˚ | 140˚ | 140˚ | 140˚ |
| Life Time | 30,000hr | 30,000hr | 30,000hr | 30,000hr | 30,000hr | 30,000hr |
| Available Temperature(˚C) | -20˚C~50˚C | -20˚C~50˚C | -20˚C~50˚C | -20˚C~50˚C | -20˚C~50˚C | -20˚C~50˚C |
