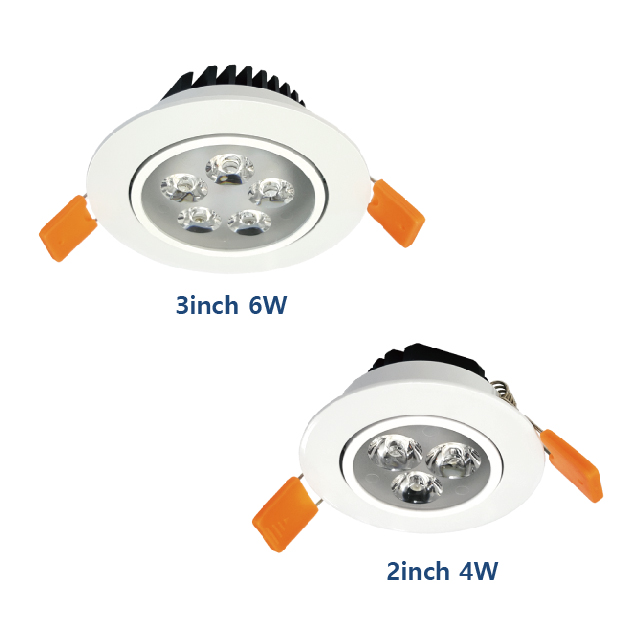

2inch – 4W / 3inch – 6W
FEATURE
1. NO Mercury, ECO-FRIENDLY Lighting.
2. Light up right after turning on without ickering
3. High E cient Di user Plate.
4. LED Luminous, SMPS and Lamp are Intergrated.
5. Keep Brightness in Lower Temperature.
6. Long Life Uses.
USES
Three Wave Length Light Internatives.
Public O ce, Commercial Bulidings and
All over places.

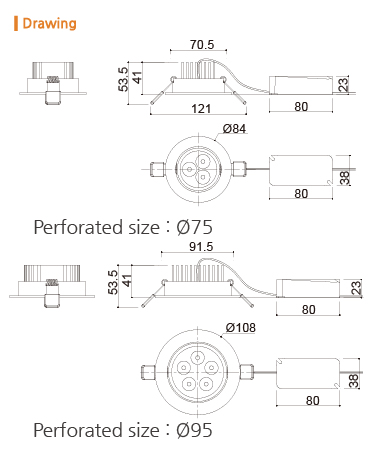

Drawing
Installations
Products Specification
| Description No. | D/L Lens 2″ 4W ZD-042-U30J-E01 | D/L Lens 2″ 4W ZD-042-U57J-E01 | D/L Lens 3″ 6W ZD-063-U30J-E01 | D/L Lens 3″ 6W ZD-063-U57J-E01 |
|---|---|---|---|---|
| Luminous Flux(lm) | OVER 260 lm | OVER 300 lm | OVER 390 lm | OVER 450 lm |
| LUminous Efficiency(lm/w) | 65lm/W | 75lm/W | 65lm/W | 75lm/W |
| CRI(Ra) | OVER 80Ra | OVER 80Ra | OVER 80Ra | OVER 80Ra |
| Light Color(K) | 3,000K | 5,700K | 3,000K | 5,700K |
| Beam Angle( ˚ ) | 30˚ | 30˚ | 30˚ | 30˚ |
| Weight | 155g | 155g | 234g | 234g |
| Power Consumption | 4 W | 4 W | 6 W | 6 W |
| Life Time | 40,000hr | 40,000hr | 40,000hr | 40,000hr |
| Available Temperature(˚C) | -20˚C~50˚C | -20˚C~50˚C | -20˚C~50˚C | -20˚C~50˚C |
