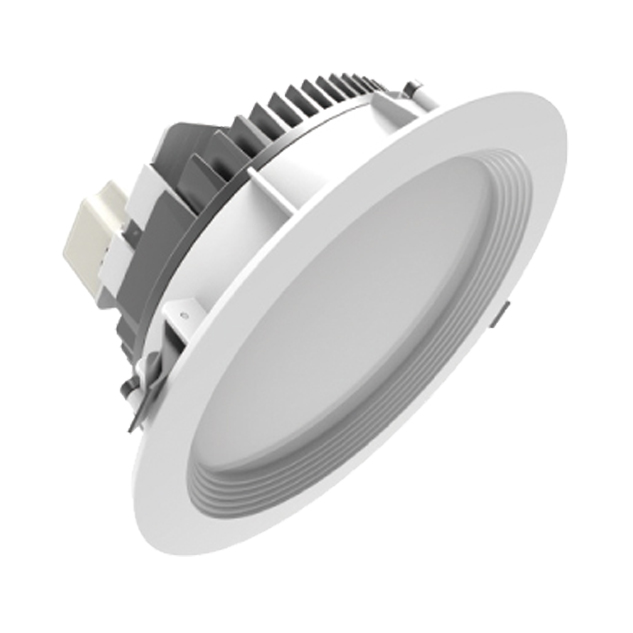

C Type / 6″ – 12w 20w / 8″ – 25w 40w
FEATURE
1. NO Mercury, ECO-FRIENDLY Lighting.
2. Light up right after turning on without ickering
3. High E cient Di user Plate.
4. LED Luminous, SMPS and Lamp are Intergrated.
5. Keep Brightness in Lower Temperature.
6. Long Life Uses.
USES
Three Wave Length Light Internatives.
Public O ce, Commercial Bulidings, Hotels
and All over places.

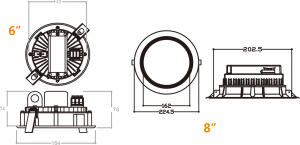

FLOOR PLAN

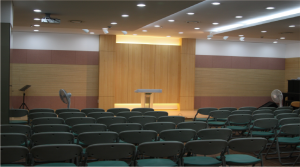

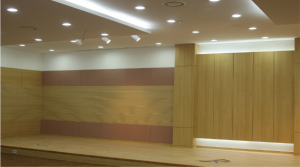

Installations
Products Specification
| Description No. | D/L 6”/12W /CW ZD-C601-CW-012 | D/L 6”/15W /CW ZD-C601-CW-020 | D/L 8”/22W /CW ZD-U258-E01 | D/L 8”/22W /CW ZD-U408-E01 |
|---|---|---|---|---|
| Luminous Flux(lm) | 960lm | 1,412lm | 2,014lm | 3,300lm |
| LUminous Efficiency(lm/w) | 70.2lm/w | 70.6m/w | 79lm/w | 85lm/w |
| CRI(Ra) | OVER 84.1Ra | OVER 89.3Ra | OVER 82.7Ra | OVER 82.6Ra |
| Light Color(K) | 5,700K | 5,700K | 5,700K | 5,700K |
| Beam Angle( ˚ ) | 140˚ | 140˚ | 140˚ | 140˚ |
| Weight | 600g | 600g | 1400g | 1400g |
| Power Consumption | 12w | 15w | 25w | 40w |
| Life Time | 40,000hr | 40,000hr | 40,000hr | 40,000hr |
| Available Temperature(˚C) | -20˚C~50˚C | -20˚C~50˚C | -20˚C~50˚C | -20˚C~50˚C |
