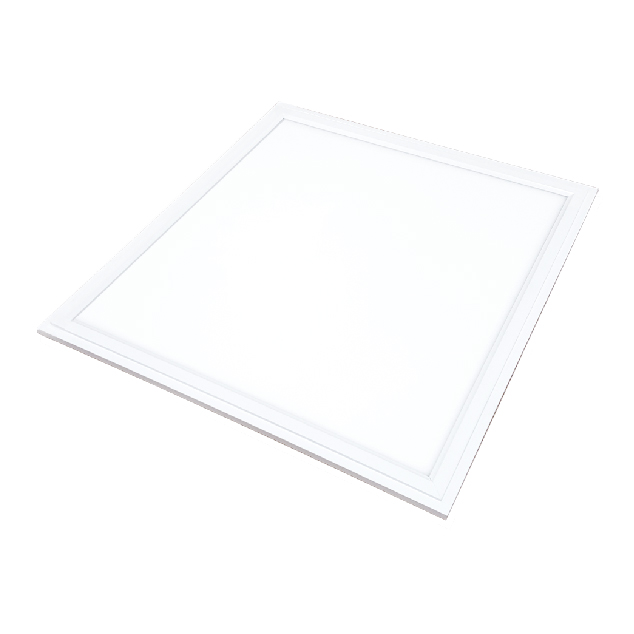

Edge lit – 600x600mm 40W,50W / 450x450mm 45W
FEATURE
1. NO Mercury, ECO-FRIENDLY Lighting.
2. Light up right after turning on without ickering
3. Keep Brightness in Lower Temperature.
4. Long Life Uses.
USES
House, Living Room, O ce, Apartment, Shops,
Hospital and All over Places.

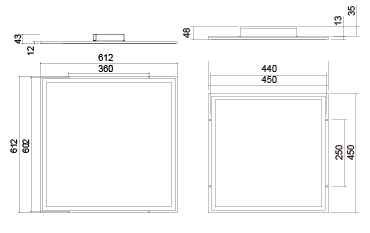

FLOOR PLAN
Installations
Products Specification
| Description No. | 40W M_bar ZE-40B-M60B-E01 | 50W M_bar ZE-50B-M60B-E01 | 45W M_bar ZE-45D-M60B-E01 |
|---|---|---|---|
| Luminous Flux(lm) | 3,600 lm | 4,500 lm | 4,140 lm |
| LUminous Efficiency(lm/w) | 90 lm/W | 90 lm/W | 92 lm/W |
| CRI(Ra) | OVER 80 Ra | OVER 80 Ra | OVER 80 Ra |
| Light Color(K) | 6,500 K | 6,500 K | 6,500 K |
| Beam Angle( ˚ ) | 120˚ | 120˚ | 120˚ |
| Size | 612X612X12mm | 612X612X12mm | 450X450X12mm |
| Weight | 3.8 kg | 3.8 kg | 2.5 kg |
| Power Consumption | 40W | 50W | 45W |
| Life Time | 40,000hr | 40,000hr | 40,000hr |
| Available Temperature(˚C) | -20˚C~50˚C | -20˚C~50˚C | -20˚C~50˚C |
