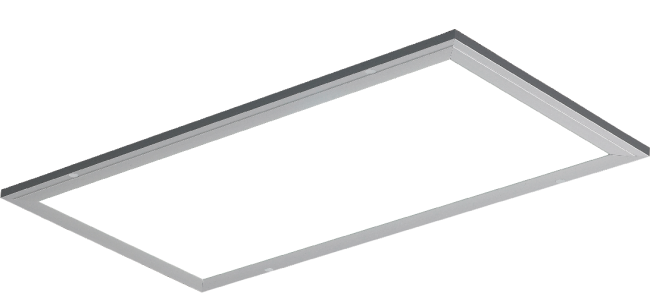

600x300mm (Edge lit) – 22w
FEATURE
1. NO Mercury, ECO-FRIENDLY Lighting.
2. Light up right after turning on without ickering
3. Keep Brightness in Lower Temperature.
4. Long Life Uses.
USES
House, Living Room, Oce, Department, Shops,
Hospital and All over Places.
![Light Color 5700K](http://www.zamled.com/wp-content/uploads/2015/07/panellight_35w40w45w50w_img-300x148.png)

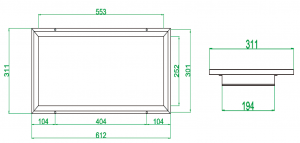

FLOOR PLAN
![panel light 600x300 edge lit floor plan](http://www.zamled.com/wp-content/uploads/2015/07/panellight_600x300_edge_img-300x143.png)

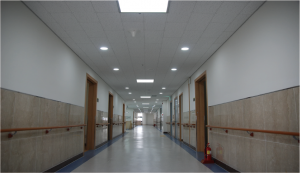

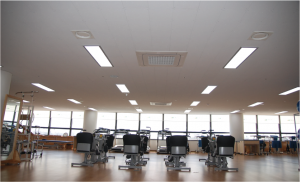

Installations
![panel light 600x300 edge lit installations](http://www.zamled.com/wp-content/uploads/2015/07/panellight_600x300_edge_img3-300x182.png)
![panel light 600x300 edge lit installations](http://www.zamled.com/wp-content/uploads/2015/07/panellight_600x300_edge_img3-2-300x173.png)
Products Specification
Description No. | Panel Light/22W ZF-16-CW-022 |
---|---|
Luminous Flux(lm) | 1,801lm |
LUminous Efficiency(lm/w) | 81lm/w |
CRI(Ra) | OVER 84Ra |
Light Color(K) | 5,700K |
Beam Angle( ˚ ) | 120˚ |
Weight | 3kg |
Power Consumption | 22w |
Life Time | 40,000hr |
Available Temperature(˚C) | -20˚C~50˚C |
